Full spectrum example

This notebook compares the output of Eradiate’s Mitsuba and DISORT backends for spectral computations.

import eradiate
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from eradiate.experiments import AtmosphereExperiment
from eradiate.units import unit_registry as ureg

import eradiate_disort as ed

eradiate.set_mode("ckd")
sns.set_theme(style="ticks")

# Constants
ABSORPTION_DB = (
    "monotropa"  # change to 'panellus' (1 nm resolution) or 'mycena' (10 nm)
)

Surface spectrum loading

# Load surface spectrum
from eradiate.scenes.spectra import InterpolatedSpectrum

albedo_data = np.loadtxt(
    eradiate.fresolver.resolve("spectra/HAMSTER_spectral_albedo_Gobabeb_015.txt"),
    skiprows=1,
)
albedo_spectrum = InterpolatedSpectrum(
    wavelengths=albedo_data[:, 0], values=albedo_data[:, 1]
)

Experiment definition

def experiment(backend, wmin=600.0, wmax=610.0, tau_ref=0.0):
    srf = {"type": "uniform", "wmin": wmin, "wmax": wmax}
    angles = {"construct": "hplane", "azimuth": 75.0, "zeniths": [60.0]}
    measures = (
        [
            {
                "id": "radiance_toa",
                "type": "mdistant",
                **angles,
                "srf": srf,
            },
            {
                "id": "radiance_boa",
                "type": "mdistant",
                **angles,
                "srf": srf,
                "target": [1, 1, 0],
            },
        ]  # Mitsuba backend: 2 measurements (TOA and BOA levels)
        if backend == "mitsuba"
        else {"id": "disort", "type": "disort", **angles, "srf": srf}
        # DISORT backend: single measurement to record both TOA and BOA (default)
    )

    particle_layer = (
        {
            "tau_ref": tau_ref,
            "w_ref": 550.0,
            "bottom": 0.0,
            "top": 3.0 * ureg.km,
            "distribution": "uniform",
            # "dataset": "soot.mie-aer_core_v2",
            "dataset": "wc.sol.mie_reff.010-aer_core_v2",
        }
        if tau_ref
        else []
    )  # Cloud particle layer if tau_ref is nonzero

    exp = AtmosphereExperiment(
        geometry={
            "type": "plane_parallel",
            "toa_altitude": 120.0 * ureg.km,
            "zgrid": np.linspace(0, 120, 121) * ureg.km,
        },
        surface={"type": "lambertian", "reflectance": albedo_spectrum},
        atmosphere={
            "type": "heterogeneous",
            "molecular_atmosphere": {"absorption_data": ABSORPTION_DB},
            "particle_layers": particle_layer,
        },
        illumination={
            "type": "directional",
            "zenith": 30.0,
            "azimuth": 160.0,
        },
        measures=measures,
    )
    exp.integrator.moment = True

    return exp

Processing

exp_kwargs = {"wmin": 600.0, "wmax": 650.0, "tau_ref": 0.0}
# exp_kwargs = {"wmin": 600.0, "wmax": 850.0, "tau_ref": 0.0}
# exp_kwargs = {"wmin": 600.0, "wmax": 850.0, "tau_ref": 10.0}
# exp_kwargs = {"wmin": 600.0, "wmax": 650.0, "tau_ref": 10.0}

exp_mitsuba = experiment("mitsuba", **exp_kwargs)
eradiate.run(exp_mitsuba, spp=10_000)
result_mitsuba = exp_mitsuba.results

exp_disort = experiment("disort", **exp_kwargs)
backend = ed.DisortBackend()
result_disort = backend.run(exp_disort)

TOA radiance and BRF plotting

# Extract irradiance
irradiance_toa_mitsuba = result_mitsuba["radiance_toa"]["irradiance"].squeeze()

# Extract Mitsuba radiance
radiance_toa_mitsuba = result_mitsuba["radiance_toa"]["radiance"].squeeze()
radiance_toa_mitsuba_std = np.sqrt(
    result_mitsuba["radiance_toa"]["radiance_var"].squeeze()
)

# Compute Mitsuba BRF standard deviation
brf_toa_mitsuba = result_mitsuba["radiance_toa"]["brf"].squeeze()
x = np.pi / result_mitsuba["radiance_toa"]["irradiance"]
brf_toa_mitsuba_std = np.sqrt(
    (result_mitsuba["radiance_toa"]["radiance_var"] * x**2).squeeze()
)

# Compute DISORT BRF
radiance_toa_disort = result_disort["disort"]["uu"].isel(z=0).squeeze()
irradiance_toa_disort = result_disort["disort"]["rfldir"].isel(z=0).squeeze()
cos_theta_s = np.cos(exp_disort.illumination.zenith.m_as("rad"))
brf_toa_disort = radiance_toa_disort / irradiance_toa_disort * np.pi

wmin, wmax = 600.0, 850.0
# wmin, wmax = 600.0, 610.0
# wmin, wmax = 750.0, 780.0

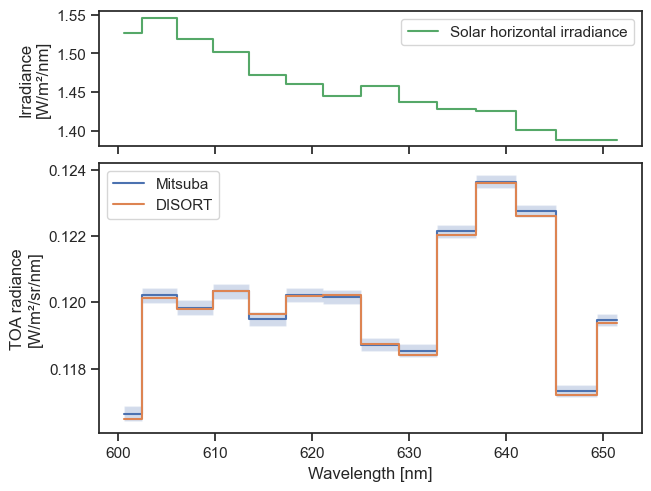

fig, axs = plt.subplots(2, 1, height_ratios=[0.5, 1], sharex=True, layout="constrained")

ax = axs[0]
x = irradiance_toa_mitsuba["w"].values
y = irradiance_toa_mitsuba.values

mask = (x >= wmin) & (x <= wmax)
ax.step(x[mask], y[mask], where="mid", label="Solar horizontal irradiance", c="C2")

ax.set_ylabel("Irradiance\n[W/m²/nm]")
ax.legend()

ax = axs[1]
x = radiance_toa_mitsuba["w"].values
y = radiance_toa_mitsuba.values
y_std = radiance_toa_mitsuba_std.values
ymin = y - y_std * 2.0
ymax = y + y_std * 2.0

mask = (x >= wmin) & (x <= wmax)
ax.step(x[mask], y[mask], where="mid", label="Mitsuba")
ax.fill_between(x[mask], ymin[mask], ymax[mask], step="mid", alpha=0.25)

x = radiance_toa_disort["w"].values
y = radiance_toa_disort.values

mask = (x >= wmin) & (x <= wmax)
ax.step(x[mask], y[mask], where="mid", label="DISORT")

ax.set_xlabel("Wavelength [nm]")
ax.set_ylabel("TOA radiance\n[W/m²/sr/nm]")
# ax.set_ylim(-0.01, 0.51)
ax.legend()

plt.show()
plt.close()

# wmin, wmax = 650.0, 850.0
# wmin, wmax = 750.0, 780.0
# wmin, wmax = 660.0, 680.0

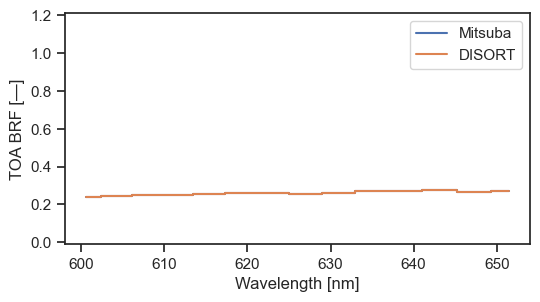

fig, ax = plt.subplots(1, 1, figsize=(6, 3))

x = brf_toa_mitsuba["w"].values
y = brf_toa_mitsuba.values
y_std = brf_toa_mitsuba_std.values
ymin = y - y_std * 2.0
ymax = y + y_std * 2.0
mask = (x >= wmin) & (x <= wmax)
ax.step(x[mask], y[mask], where="mid", label="Mitsuba")
ax.fill_between(x[mask], ymin[mask], ymax[mask], step="mid", alpha=0.25)

x = brf_toa_disort["w"].values
y = brf_toa_disort.values
mask = (x >= wmin) & (x <= wmax)
ax.step(x[mask], y[mask], where="mid", label="DISORT")

# x = albedo_spectrum.wavelengths.m_as("nm")
# y = albedo_spectrum.values
# mask = (x >= wmin) & (x <= wmax)
# ax.plot(x[mask], y[mask], label="Surface", c="gray", zorder=1, ls="--")

ax.set_xlabel("Wavelength [nm]")
ax.set_ylabel("TOA BRF [—]")
ax.set_ylim(-0.01, 1.21)
ax.legend()

plt.show()
plt.close()

# wmin, wmax = 650.0, 850.0
# wmin, wmax = 750.0, 780.0
# wmin, wmax = 660.0, 680.0

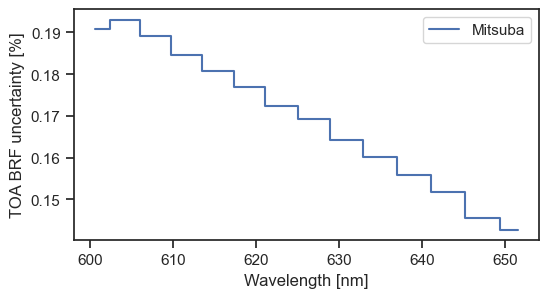

fig, ax = plt.subplots(1, 1, figsize=(6, 3))

x = brf_toa_mitsuba["w"].values
brf = brf_toa_mitsuba.values
brf_std = brf_toa_mitsuba_std.values
y = brf_std / brf * 2.0 * 100.0
mask = (x >= wmin) & (x <= wmax)
ax.step(x[mask], y[mask], where="mid", label="Mitsuba")

ax.set_xlabel("Wavelength [nm]")
ax.set_ylabel("TOA BRF uncertainty [%]")
# ax.set_ylim(-1, None)
ax.legend()

plt.show()
plt.close()

BOA radiance plotting

# Extract irradiance
irradiance_toa_mitsuba = result_mitsuba["radiance_toa"]["irradiance"].squeeze()

# Extract Mitsuba radiance
radiance_boa_mitsuba = result_mitsuba["radiance_toa"]["radiance"].squeeze()
radiance_boa_mitsuba_std = np.sqrt(
    result_mitsuba["radiance_toa"]["radiance_var"].squeeze()
)

wmin, wmax = 600.0, 850.0
# wmin, wmax = 600.0, 610.0
# wmin, wmax = 750.0, 780.0

fig, axs = plt.subplots(2, 1, height_ratios=[0.5, 1], sharex=True, layout="constrained")

ax = axs[0]
x = irradiance_toa_mitsuba["w"].values
y = irradiance_toa_mitsuba.values

mask = (x >= wmin) & (x <= wmax)
ax.step(x[mask], y[mask], where="mid", label="Solar horizontal irradiance", c="C2")

ax.set_ylabel("Irradiance\n[W/m²/nm]")
ax.legend()

ax = axs[1]
x = radiance_boa_mitsuba["w"].values
y = radiance_boa_mitsuba.values
y_std = radiance_boa_mitsuba_std.values
ymin = y - y_std * 2.0
ymax = y + y_std * 2.0

mask = (x >= wmin) & (x <= wmax)
ax.step(x[mask], y[mask], where="mid", label="Mitsuba")
ax.fill_between(x[mask], ymin[mask], ymax[mask], step="mid", alpha=0.25)

x = radiance_toa_disort["w"].values
y = radiance_toa_disort.values

mask = (x >= wmin) & (x <= wmax)
ax.step(x[mask], y[mask], where="mid", label="DISORT")

ax.set_xlabel("Wavelength [nm]")
ax.set_ylabel("TOA radiance\n[W/m²/sr/nm]")
# ax.set_ylim(-0.01, 0.51)
ax.legend()

plt.show()
plt.close()
