Nonzero altitude example

This notebook compares the output of Eradiate’s Mitsuba and DISORT backends for a computation at nonzero altitude.

import eradiate
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from eradiate.experiments import AtmosphereExperiment
from eradiate.units import unit_registry as ureg

import eradiate_disort as ed

eradiate.set_mode("ckd")
sns.set_theme(style="ticks")

# Constants
ZENITHS = np.arange(-75.0, 76.0, 1.0)
SPP = 1_000
# CASES = {"0": 0.0, "1": 1.0, "5": 5.0, "10": 10.0}
CASES = {"0": 0.0, "50": 50.0}
# wmin, wmax = 300.0, 700.0
wmin, wmax = 600.0, 700.0

ABSORPTION_DB = (
    "monotropa"  # change to 'panellus' (1 nm resolution) or 'mycena' (10 nm)
)

results = {}

for case_id, altitude in CASES.items():
    print(f"Processing case {case_id!r}")
    exp_kwargs = {"altitude": altitude, "wmin": wmin, "wmax": wmax}

    exp_mitsuba = make_exp("mitsuba", **exp_kwargs)
    result_mitsuba = eradiate.run(exp_mitsuba, spp=1_000)

    exp_disort = make_exp("disort", **exp_kwargs)
    backend = ed.DisortBackend()
    result_disort = backend.run(exp_disort)

    # Extract irradiance
    irradiance = result_mitsuba["toa_radiance"]["irradiance"].squeeze()

    # Extract Mitsuba radiance
    radiance_mitsuba = result_mitsuba["toa_radiance"]["radiance"].squeeze()
    radiance_mitsuba_std = np.sqrt(
        result_mitsuba["toa_radiance"]["radiance_var"].squeeze()
    )

    # Compute Mitsuba BRF standard deviation
    brf_mitsuba = result_mitsuba["toa_radiance"]["brf"].squeeze()
    x = np.pi / result_mitsuba["toa_radiance"]["irradiance"]
    brf_mitsuba_std = np.sqrt(
        (result_mitsuba["toa_radiance"]["radiance_var"] * x**2).squeeze()
    )

    # Compute DISORT BRF
    radiance_disort = result_disort["measure"]["uu"].isel(z=0).squeeze()
    irradiance_disort = result_disort["measure"]["rfldir"].isel(z=0).squeeze()
    cos_theta_s = np.cos(exp_disort.illumination.zenith.m_as("rad"))
    brf_disort = radiance_disort / irradiance_disort * np.pi

    # Collect BOA flux (Mitsuba)
    boa_flux_mitsuba = result_mitsuba["boa_flux"]["radiosity"].squeeze()

    # Collect BOA flux (DISORT)
    boa_flux_disort = result_disort["measure"]["flup"].isel(z=-1).squeeze()

    results[case_id] = {
        "brf_mitsuba": brf_mitsuba,
        "brf_mitsuba_std": brf_mitsuba_std,
        "brf_disort": brf_disort,
        "boa_flux_mitsuba": boa_flux_mitsuba,
        "boa_flux_disort": boa_flux_disort,
    }

Processing case '0'

Processing case '50'

/home/leroyv/Documents/src/rayference/rtm/eradiate-disort/.pixi/envs/default/lib/python3.12/site-packages/xarray/computation/apply_ufunc.py:820: RuntimeWarning: invalid value encountered in sqrt
  result_data = func(*input_data)

ncases = len(CASES)
ncols = 2
nrows = ncases // ncols + min(ncases % ncols, 1)

fig, axs = plt.subplots(
    nrows,
    ncols,
    figsize=(4 * ncols, 3 * nrows),
    layout="constrained",
    squeeze=False,
)

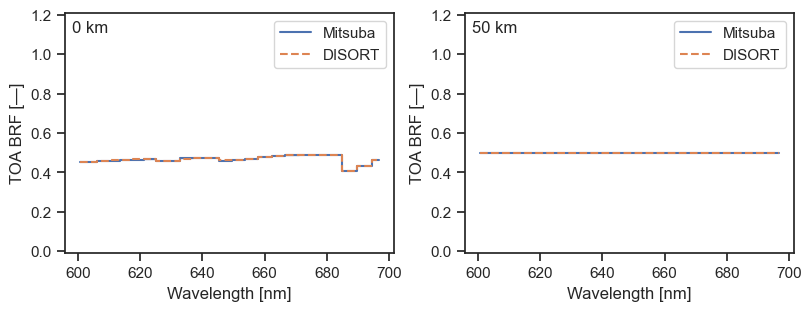

for i, case_id in enumerate(CASES.keys()):
    irow = i // ncols
    icol = i % ncols
    ax = axs.ravel()[i]
    brf_mitsuba = results[case_id]["brf_mitsuba"]
    brf_mitsuba_std = results[case_id]["brf_mitsuba_std"]
    brf_disort = results[case_id]["brf_disort"]

    x = brf_mitsuba["w"].values
    y = brf_mitsuba.values
    y_std = brf_mitsuba_std.values
    ymin = y - y_std * 2.0
    ymax = y + y_std * 2.0
    mask = (x >= wmin) & (x <= wmax)
    ax.step(x[mask], y[mask], where="mid", label="Mitsuba")
    ax.fill_between(x[mask], ymin[mask], ymax[mask], step="mid", alpha=0.25)

    x = brf_disort["w"].values
    y = brf_disort.values
    mask = (x >= wmin) & (x <= wmax)
    ax.step(x[mask], y[mask], where="mid", label="DISORT", ls="--")

    ax.set_xlabel("Wavelength [nm]")
    ax.set_ylabel("TOA BRF [—]")
    ax.set_ylim(-0.01, 1.21)
    ax.legend()
    ax.set_title(f"{case_id} km", horizontalalignment="left", x=0.02, y=1.0, pad=-14)

plt.show()
plt.close()

ncases = len(CASES)
ncols = 2
nrows = ncases // ncols + min(ncases % ncols, 1)

fig, axs = plt.subplots(
    nrows,
    ncols,
    figsize=(4 * ncols, 3 * nrows),
    layout="constrained",
    squeeze=False,
)

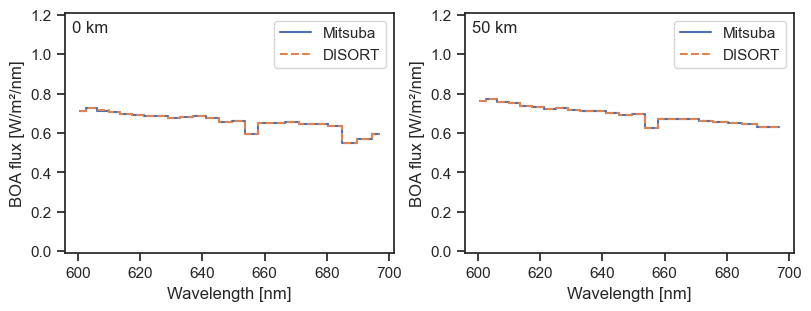

for i, case_id in enumerate(CASES.keys()):
    irow = i // ncols
    icol = i % ncols
    ax = axs.ravel()[i]
    flux_mitsuba = results[case_id]["boa_flux_mitsuba"]
    flux_disort = results[case_id]["boa_flux_disort"]

    x = flux_mitsuba["w"].values
    y = flux_mitsuba.values
    mask = (x >= wmin) & (x <= wmax)
    ax.step(x[mask], y[mask], where="mid", label="Mitsuba")

    x = flux_disort["w"].values
    y = flux_disort.values
    mask = (x >= wmin) & (x <= wmax)
    ax.step(x[mask], y[mask], where="mid", label="DISORT", ls="--")

    ax.set_xlabel("Wavelength [nm]")
    ax.set_ylabel("BOA flux [W/m²/nm]")
    ax.set_ylim(-0.01, 1.21)
    ax.legend()
    ax.set_title(f"{case_id} km", horizontalalignment="left", x=0.02, y=1.0, pad=-14)

plt.show()
plt.close()
